New Supa Lock™ fittings and extended dimension range
We are introducing new 90° and 4-way socket fittings as an addition to our Supa Lock™ threadless connection system along with new dimensions of existing fittings. 01-10-2024

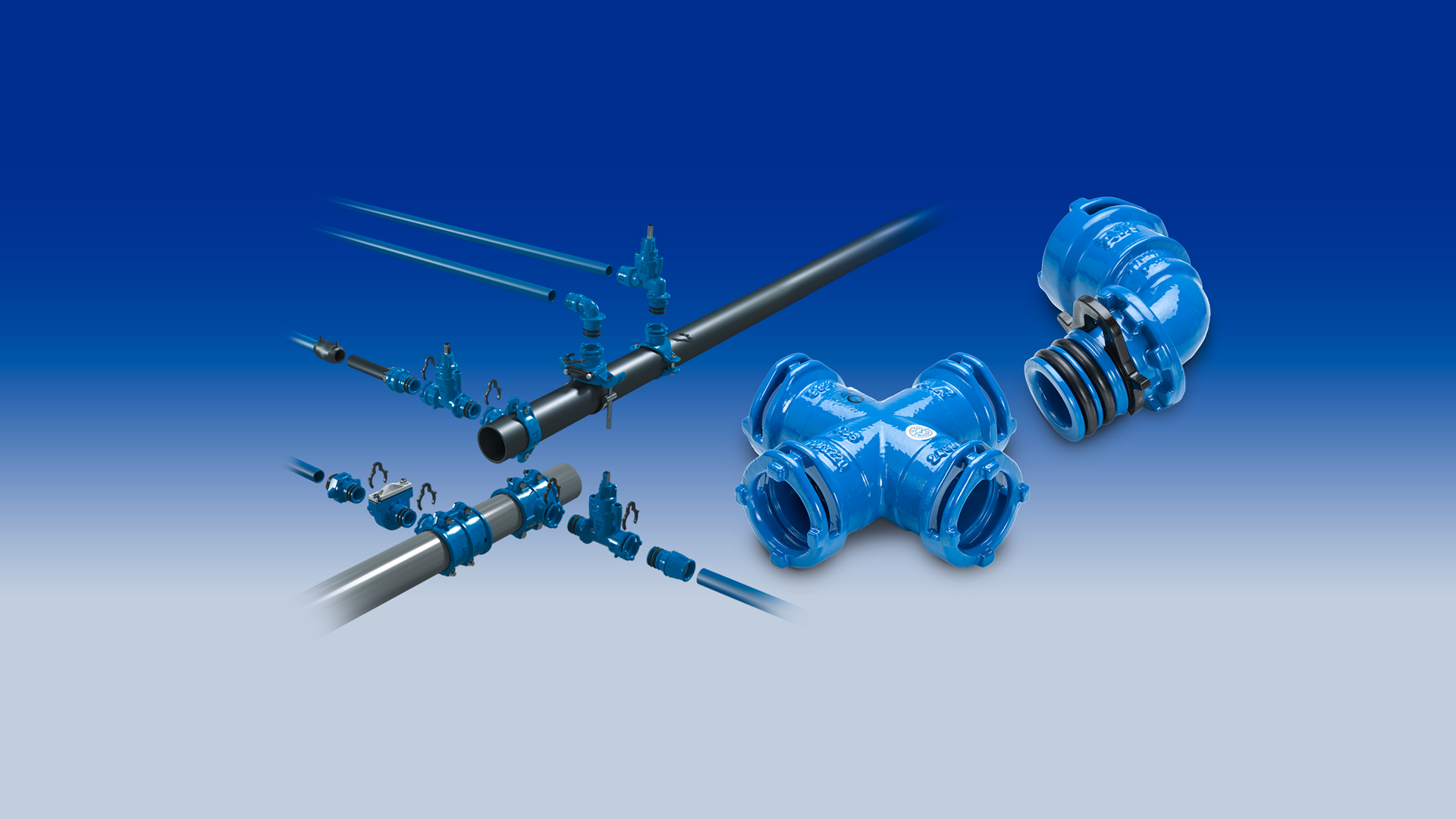

New 4-way socket fitting
The new 4-way socket fitting provides the possibility of distributing flow in different directions and can be used for buried as well as chamber installations. The socket ends have built-in locking notches enabling locking of Supa lock™ valves and fittings designed with rotation lock.
New 90° fitting with rotation lock
The new 90° fitting with Supa Lock™ spigot/socket end is designed with rotation lock on the spigot end, which is useful when making a continuous installation of the Supa lock™ system. It can be locked rotationally in eight different positions in increments of 45°, as opposed to the existing variant with 360° rotation.
New dimensions of 45° push-in fitting and fitting with PE pipe
The 45° fitting with push-in socket end for PE pipes is now also available for PE pipe dimensions Ø40 mm. And the fitting with integrated PE pipe is available for PE pipe dimensions Ø50 and Ø63 mm.
All the new Supa Lock™ fittings are suitable for PN16 installations, like all other products in the Supa Lock™ system.
Feature summary of the Supa Lock™ system:
- Corrosion-free joint
- Easy two-step assembly
- Self-locking safety retainer
- Joints with heavy duty O-rings provide extra safety
- No rotation of valves, tapping saddles and connectors
- Fittings with 360° rotation give maximum flexibility
